KEY FEATURES

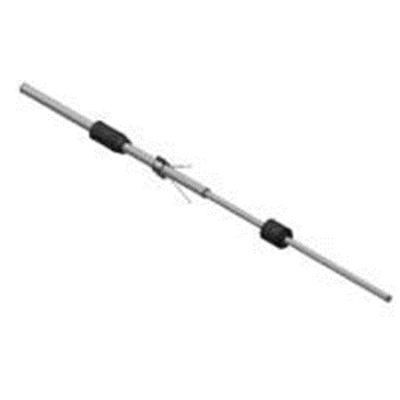

The Dynamic Cable Bolt can be installed in areas where seismic activity is expected. It can be installed with both resin and cement grouts.

A 15.2mm Compact Strand is used; with a yielding mechanism attached at the one end of the debonded Compact Strand and a Barrel, Plate & Wedge at the end which provides a point loaded yielding anchor.

  • Standard equipment is used for strand tensioning and barrel and wedge
  • Various yield loads can be achieved by modifying the yielding
  • Paired with 150 x 150 x 8mm Dome
  • Radius Barrel and 3 part
  • Relevant standards – Material AS1311 – 1987

SPECIFICATIONS

Static Yield Force Capacity 150kn (min) to 180kn (max).
Dynamic Yield Force Capacity 80kn to 120kn.
Ultimate Displacement Capacity 300mm (standard) ­ Larger capacity may be specified.
Ultimate force Capacity 250kn (25 tonne) at displacement capacity.
Energy absorption Capacity at 300mm displacement 30kj ­ larger capacity may be specified.

TECHNICAL SPECIFICATIONS

15.2mm Seven wire compact strand
Yield force (kn) – Minimum 212, Typical 285
Tensile Strength (kn) ) – Minimum 300, Typical 310
Mass Per Metre (kg) ) – Typical 1,176

ORDER INFORMATION

  • Individual lengths up to 5 meters
  • Strapped in bundles of 50
  • Other packing quantities are available on request

For further details please contact your closest Ground Support Representative
