- Installation using Grout or Resin
- Installation into poor ground
- Corrosion resistant

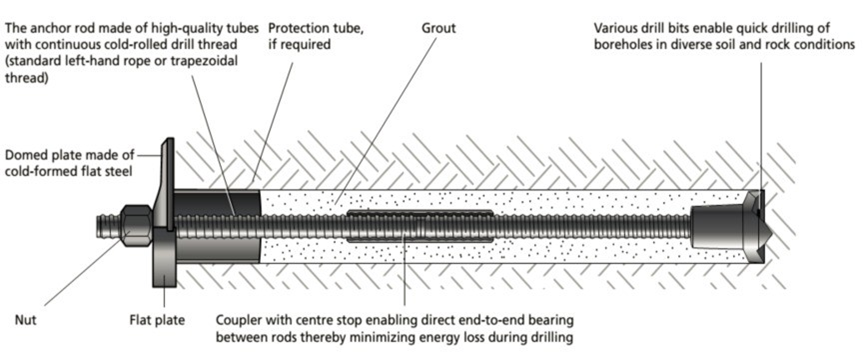

KEY FEATURES

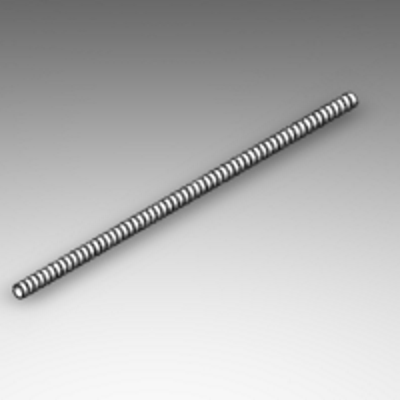

SDA BAR
| Technical Data | Unit | R25N | R32L | R32N | R32S | R38N | R51L | R51N | T76N | T76S |
| Outside Diameter (mm) | mm | 25 | 32 | 32 | 32 | 38 | 51 | 51 | 76 | 76 |
| Internal Diameter (mm) | mm | 12 | 21 | 18 | 17 | 19 | 36 | 33 | 51 | 47 |
| Cross Sectional Area | mm² | 292 | 356 | 363 | 440 | 700 | 713 | 993 | 2000 | 2400 |
| Ultimate Load | kN | 200 | 260 | 280 | 360 | 500 | 550 | 800 | 1600 | 1900 |
| Yield Load | kN | 150 | 200 | 230 | 280 | 400 | 450 | 630 | 1200 | 1500 |
| Weight | Kg/m | 2.3 | 2.8 | 3.3 | 3.4 | 5.5 | 6.3 | 7.8 | 16.5 | 19 |
| Thread Type | ISO10208 | T76N/T76S – T International Standard | ||||||||
| Type of Steel | EN10083-1 | |||||||||
| Thread (left/right hand) | Left or Right | |||||||||
| Length (m) | 1m, 2m, 3m, 4m, 5m, 6m | T76N/T76S – 1m, 2m, 3m, 4m | ||||||||

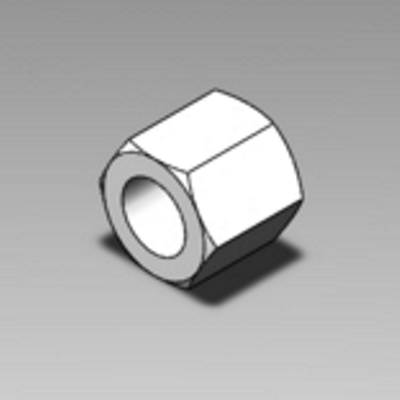

SDA NUT
| Technical Data | Unit | R25N | R32L | R32N | R32S | R38N | R51L | R51N | T76N | T76S |
| Key Size (mm) | mm | 41 | 46 | 46 | 46 | 50 | 75 | 75 | 100 | 100 |
| Length (mm) | mm | 35 | 45 | 45 | 65 | 60 | 70 | 70 | 80 | 80 |
| Weight | Kg/m | 0.25 | 0.35 | 0.35 | 0.53 | 0.5 | 1.5 | 1.5 | 2.66 | 2.66 |
| Thread Type | ISO10208 | ISO10208 | ISO1720 | T Int Standard | ||||||
| Type of Steel | CK45 | EN10083-1 | CK45 | |||||||
| Thread (left/right hand) | Left or Right | |||||||||

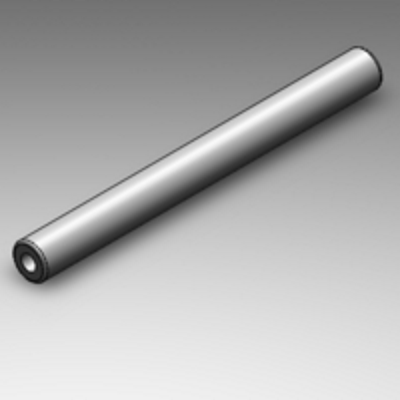

SDA COUPLING
| Technical Data | Unit | R25N | R32L | R32N | R32S | R38N | R51L | R51N | T76N | T76S |
| Outside Diameter (mm) | mm | 36 | 42 | 42 | 42 | 52 | 63 | 63 | 95 | 97 |
| Length (mm) | mm | 150 | 145 | 160 | 190 | 220 | 140 | 200 | 200 | 220 |
| Weight | Kg/m | 0.6 | 0.72 | 0..80 | 0.96 | 1.8 | 1.26 | 1.9 | 4.3 | 5.35 |
| Thread Type | ISO10208 | ISO10208 | ISO1720 | T Int Standard | ||||||
| Type of Steel | EN10083-1 | |||||||||
| Thread (left/right hand) | Left or Right | |||||||||
SDA DRILL BIT
Options of Anti Corrosion:
• Epoxy Coating
• Hot-Dipped Galvanized – Standard ISO 1461
Hardened Cross Bit for loose to soft ground conditions.
TC Cross Bit for soft to medium rock formations.
Hardened button Bits for unconsolidated rock with boulders.
TC Button Bit for medium rock formations.
| GENERAL GUIDE ANCHOR BIT DIAMETERS (Guide Only) | |||||||
| Thread Size | R25 |
|
R38 | R51 | T76 | ||
| Outside Diameter (mm) | 42 / 51 | 51 / 76 /90 | 76 / 90 / 100 | 90 / 100 / 115 | 130 / 150 / 170 |
ADD TO QUOTE LIST
Add this product to your quote list.
