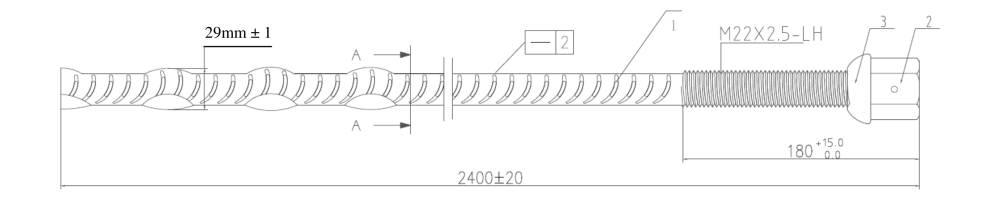

PHYSICAL DIMENSIONS

Properties Typical

Ultimate Tensile Strength                  630 Mpa – 198 kN

Yield Strength                                       500 Mpa – 157 kN

Mass per /meter                                   2.70Kg

Standard Elongation                           Typ 15%

Bar Diameter                                         Core 20.30mm            Major 22.70mm

Shear Strength (0.7 x UTS)              Typ 138 kN

Thread                                                   ISO 22 x 2.5mm pitch

Nut options                                            Dome ball – Pin Nut

Drill Hole size Dia                                 35.0mm – 36.0mm

Lengths available                                1500 -3000mm in (Std or Gal)

GENERAL FEATURES

  • Split Set Mining Systems has designed this Chemical Paddle Bolt for the Metalliferous Mining
  • Together with a torque nut, supplied as standard, it represents state of the art technology in the one step installation of roof bolts for mining, tunneling and strata reinforcemen
  • The optional “Pin Nut” provides a low drag system,with the added benefit of eliminating the loss of nuts in transit and suites a 36mm AF Socket span
  • All Resin is supplied as per customer requirements
  • Mixing paddles for rupturing the Resin Cartridge
  • Black or Galvanizing for corrosion protection

PACKAGING

Standard bolt pack of 100, custom packaging available on request
