KEY FEATURES

  • The SS-33 tube has a nominal outside diameter of 33mm.
  • Tubes and plates are available standard or galvanized.
  • Code stampings on the tube show its size, date and place of manufacture, and heat lot of steel.
  • Split Set Mining Systems quality management system for Split Set products has been certified to the ISO-9002 international quality standard.

The Split Set stabiliser is a slotted steel tube, with one end tapered for easy insertion into a drill hole. The other end has a welded ring flange to hold the bearing plate.

The stabiliser is inserted into a hole slightly smaller in diameter than the tube, using a simple driver tool fitted to the drill. As the tube enters, its diameter is compressed and the slot partially closes. This exerts radial forces along the length of contact with the rock, providing the friction which holds the rock together. The driving force of the drill actively loads the bearing plate against the rock.

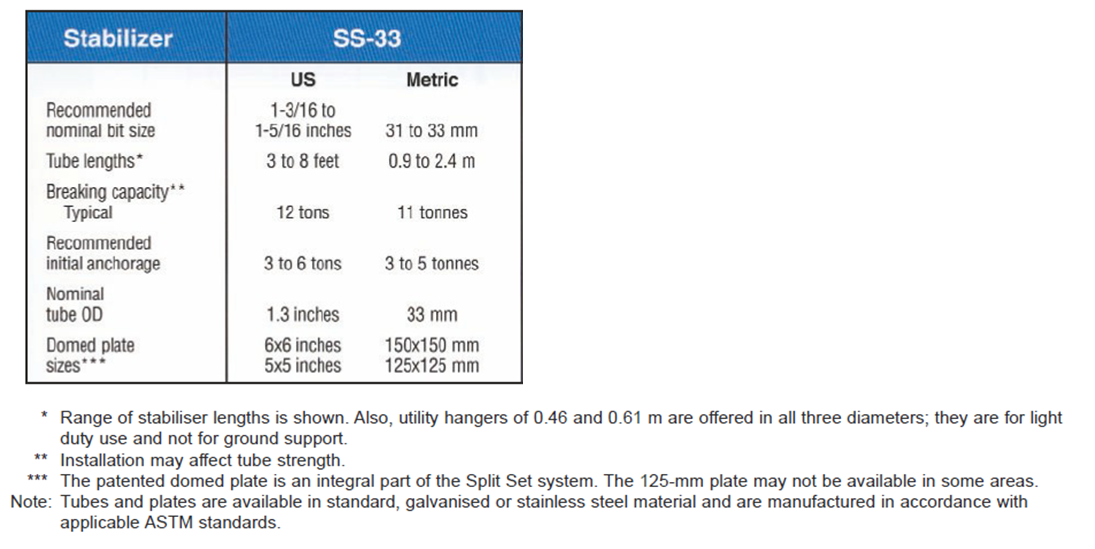

SPECIFICATIONS

Image module

ORDER INFORMATION

SS-33 tube Standard Galvanized
Length mm Weight kg CPN Weight kg CPN
450 0.7 90321076 0.7 90321662
600 0.9 90321324 0.9 90321670
900 1.4 72237936 1.5 90321688
1200 2 72237944 2.1 90321696
1500 2.4 72237951 2.6 90321704
1680 2.6 90321316 2.8 90321712
1800 2.9 72237969 3.1 90321720
2100 3.4 72237977 3.6 90321738
2400 3.8 72237985 4.1 90321746

PACKAGING

Split sets are palletized on wooden bearers and bound with steel straps.
Units per pallet = 150 per pallet

TYPICAL TEST RESULTS

The following are typical installation examples of bit size versus anchorage and driving time versus anchorage. Actual experience will vary based on bit style, drilling equipment and rock type.

Image module

INSTALLING THE SS-33 STABILIZER

The SS-33 tube has a nominal outside diameter of 33mm.

The length chosen should be the same as with other types of rock bolts, and installed with the same spacing.

The stabilizer is installed with the same drill used to make the hole. Split Set stabilizers are commonly installed with jacklegs, stopers, jumbos and automatic bolting machines. Almost any hydraulic drill, or any percussive air drill with a bore of 2-5/8 inches (66 mm) and operating at 90 psig (6 bar), will have sufficient impact.

Click here for detailed instructions on installing SS-33 SPLIT SET® Stabilisers.

SS-33 SPLIT SET® STABILISER ACCESSORIES

SS-33 PULL TEST EQUIPMENT

SPLIT SET® APPLICATION ENGINEERING SERVICE

The Split Set stabilizer is a unique rock stabilization and support system. It interacts with the rock differently from other rock bolts. For this reason, Split Set Mining Systems offer a free application engineering service to assist you in the selection of the proper Split Set configuration for your needs. We will also assist in determining the best way to use your existing equipment for the job, the best drilling procedure, and appropriate tools and accessories for your equipment and space limitations. We urge you to take advantage of this service. Our ground support technical representative will be pleased to make the arrangements.

RELATED PRODUCTS

Image module

ADD TO QUOTE LIST

Add this product to your quote list.
