KEY FEATURES

  • Model SS-46 Split Set stabilisers are 46 mm in diameter.
  • Tubes and plates are available standard or galvanized
  • Code stampings on the tube show its size, date and place of manufacture, and heat lot of steel.
  • Split Set Mining Systems quality management system for Split Set products has been certified to the ISO-9002 international quality standard.

The Split Set stabiliser is a slotted steel tube, with one end tapered for easy insertion into a drill hole. The other end has a welded ring flange to hold the bearing plate.

The stabiliser is inserted into a hole slightly smaller in diameter than the tube, using a simple driver tool fitted to the drill. As the tube enters, its diameter is compressed and the slot partially closes. This exerts radial forces along the length of contact with the rock, providing the friction which holds the rock together. The driving force of the drill actively loads the bearing plate against the rock.

SPECIFICATIONS

Image module
Material type, grade and properties
Element material type is high strength steel.
Material grade HA 350
Mass per metre 2.75 Kgs
Mechanical performance
Ring weld dimensions 4mm
Mean rupture strength of ring/element connection 18 tonnes
Yield strength minimum 350 MPa, typical 460 MPa
UTS minimum 430 MPa, typical 525 MPa
Dimensions and Tolerances
Hollow Element Arcuate cross section 355 sq.mm
Outer diameter (mean and tolerance) 46+/-0.8mm
Inner diameter, reference only. 39.7+/-0.2mm
Slot width (mean & tolerance) 21.5+/-0.2mm
Effective cross sectional 355 sq.mm

ORDER INFORMATION

SS-46 TUBE STANDARD (BLACK) GALVANIZED
Length (mm) Weight (Kg) CPN Weight (Kg) CPN
600 1.8 90322579 1.8 90322652
900 2.6 90322470 2.7 90322660
1200 3.5 90322769 3.6 90322751
1500 4.3 90321811 4.5 90322330
1800 5.1 90321522 5.4 90322348
1980 5.5 90322132 5.8 90322678
2100 6 90321530 6.3 90321753
2400 6.8 90321548 7.1 90321761
2740 7.6 90321555 8 90321779
3000 8.5 90321563 8.9 90321787
3300 9.4 90322306 9.8 90322355
3600 10.2 90322314 10.7 90322363

PACKAGING

Split sets are palletized on wooden bearers and bound with steel straps.

Units per pallet – 150

TYPICAL TEST RESULTS

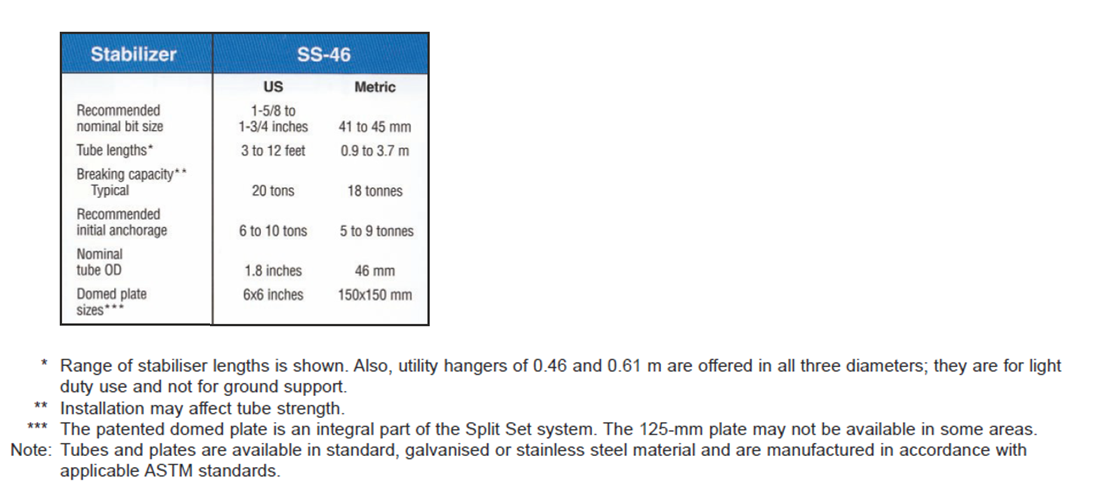

The following are typical installation examples of bit size versus anchorage and driving time versus anchorage. Actual experience will vary based on bit style, drilling equipment and rock type.

Image module

INSTALLING THE SS-46 STABILIZER

The SS-46 tube has a nominal outside diameter of 1.8 inches (46 mm).

The length chosen should be the same as with other types of rock bolts, and installed with the same spacing.

The stabiliser is installed with the same drill used to make the hole. Model SS-46 Split Set stabilisers are commonly installed with jumbos. Almost any mounted percussive or hydraulic drill will have sufficient impact power for installing SS-46 stabilisers.

Click here for detailed instructions on installing SS-46 SPLIT SET® Stabilisers.

SS-46 SPLIT SET® STABILISER ACCESSORIES

SS-46 PULL TEST EQUIPMENT

SPLIT SET® APPLICATION ENGINEERING SERVICE

The Split Set stabilizer is a unique rock stabilization and support system. It interacts with the rock differently from other rock bolts. For this reason, Split Set Mining Systems offer a free application engineering service to assist you in the selection of the proper Split Set configuration for your needs. We will also assist in determining the best way to use your existing equipment for the job, the best drilling procedure, and appropriate tools and accessories for your equipment and space limitations. We urge you to take advantage of this service. Our ground support technical representative will be pleased to make the arrangements.
