KEY FEATURES

Various choices are available to suit differing needs eg. Debonding of cable, corrosion protection through intensive sand blasting and painting process, fish hooks and swages for up hole installation, factory fitting of grout and/or breather tubes to save site labour costs.

  • Available In 12.7mm dia, 15.2mm dia and 18.0mm dia

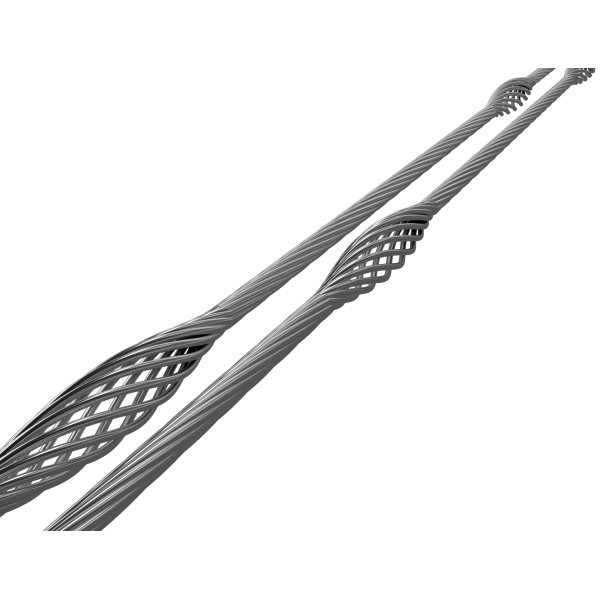

  • Available in Plain, Bulb, Birdcage and Partial Birdcage
  • 7mm dia. single – installed into split sets for improved load capacity
  • Strandpacks – These are available in centre-pull reeless coils.
  • Split Set Mining Systems have specially designed dispensers to ensure the strand is pulled from the coil correctly. Available in 3 tonne or 1 tonne (right hand lay for standard cabolter applications. Left hand is available on request.) External protective wrapping & pallets available.

SPECIFICATIONS

12.7mm dia. stress relieved 7 wire strand to AS1311

Single strand min. Breaking load  –  184kN

Elongation 3.5% minimum, 6.5% average

15.2mm dia. stress relieved 7 wire strand to AS1311

Single strand min. breaking load  –  250kN

Elongation 3.5% minimum, 6.5% average

ORDER INFORMATION

Below is a list of our top selling cable bolts in 2019:

CPN PRODUCT DESCRIPTION
89451637 Cable Bolt  6.0m Single 1b/M 28mm Bulbs
89451414 Cable Bolt  6.0m Twin   1b/M
89450001 Cable Bolt  6.3m Single 1b/M 28mm Bulbs
89450811 Cable Bolt  6.3m Twin   1b/M 28mm Bulbs
89450810 Cable Bolt  6.5m Twin   1b/M 28mm Bulbs
89451721 Cable Bolt  8.3m Twin   1b/M 28mm Bulbs
89451702 Cable Bolt  9.3m Twin   1b/M 28mm Bulbs
89451413 Cable Bolt 12.3m Twin   1b/M 28mm Bulbs
19531745 Cable Bolt 600 M Single 1b/M 28mm Bulbs

For further details please contact your closest Ground Support Representative

PACKAGING

Image module

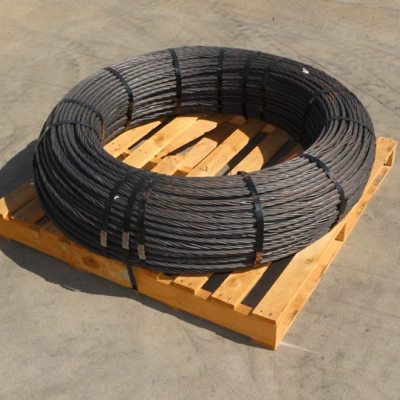

Cables are coiled and on a pallet for transport efficiency

CABLE BOLT ACCESSORIES

  1. Cable Bolt Dispensers
  2. Cable Bolt Spacers
