KEY FEATURES

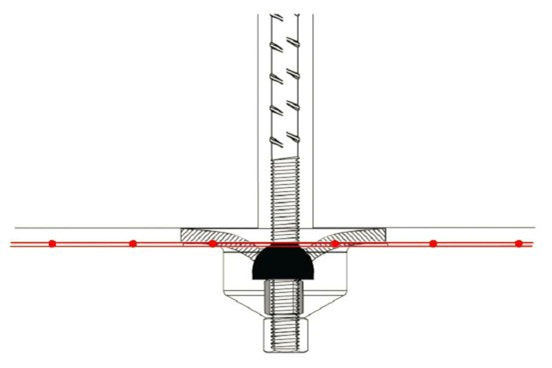

  • Express Mesh Plate is used for pinning mesh against the rock face over the top of a pre-installed rock bolt
  • Welded nut of any size to thread onto the Express Plate can be installed to rock bolts
  • 130mm round plate to aid spinning the against the mesh, with NO corners to catch in the wires
  • Express Mesh Plate could be made in a larger Diameter on enquiry
  • Extruded extra height to accommodate the standard tail length of an installed bolt, allowing the mesh to be pushed tight against the rock face
  • Good for pinning rock fall netting / mesh over installed ground support resin / grouted bolts

ORDER INFORMATION

CPN Description Thickness (mm)   Dia (mm)   Weight  (Kg) Finish
89423571 T20 Express Plate 3.0 155 0.86 Galv
89423578 R27 Express Plate 3.0 155 0.86 Black
89423575 M22 Express Plate 3.0 200 1.0 Galv
89433577 24M Express Plate 3.0 200 1.0 Galv
