KEY FEATURES

  • W” Strap is commonly used when additional support is required in conjunction with mesh and rock bolts. These steel straps are pulled into the rock surface by the bolts and tend to conform to the rock
  • “W” Strap provide a large surface to confine any loose rock that may form between installed rock
  • “W” Strap have a range of supply options being:-
  • Multi-hole (300mm apart) centers or “Set Holes” to suit individual
  • Note that 50mm hole diameter is standard, other hole diameters are available by
  • Domed Plates of Flat Plates can be supplied welded to individual holes along the “W” strap as required for an additional
  • Steel Mesh sheets can be supplied welded to the underside of these “W” Straps also at a additional
  • Corrosion protection may be provided by hot dip galvanizing (Galvanized “W” Strap is also available as required.

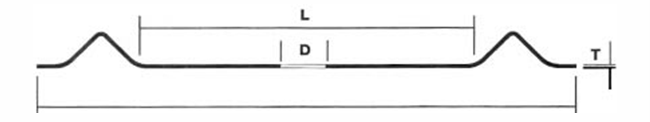

PHYSICAL DIMENSIONS

NOMINAL WIDTH W L D T TYPICAL WEIGHT PER / METER MATERIAL GRADE TYPICAL YIELD STRENGTH
mm mm mm mm mm Kg
290 280 170 50 1.9 4.5 AS/NZS1594 180 kN

ORDER INFORMATION

  • Standard “W” Strap lengths range from 900 to 3000mm in 300mm increments.
  • “W” Strap are packed in bundles of 25
  • Non-Standard requirements are available by negotiation
