KEY FEATURES

Split Set domed bearing plates uniquely combine high strength with light weight, and are integral parts of the Split Set system. The SS46 Dome Plate is used with installations of SS46 Split Set Stabilisers.

The SS46 Dome Plate comes in two sizes:

  1. 150mm x 150mm x 4mm dome plate
  2. 200mm x 200mm x 4mm dome plate

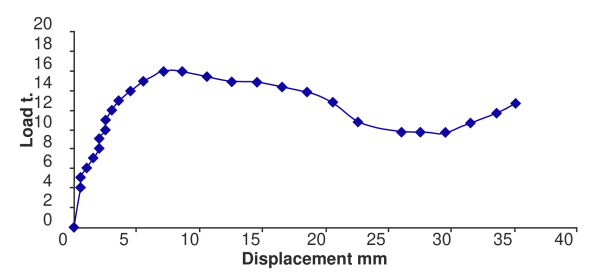

LOAD TEST

Load tested over 100mm hole diameter

Image module

ORDER INFORMATION

Description CPN Size Pallet Size Pallet Weight Kg Unit Weight Kg
SS46 Dome plate, standard 90322280 150mm 750 600 0.8
SS46 Dome plate, gal. 90322371 150mm 750 600 0.8
SS46 Dome plate, standard 90332426 200mm 600 760 1.26
SS46 Dome plate, gal. 90332425 200mm 600 760 1.26
